Glass Sliding Door System
Model Number: KD8113-B
Tray Material: Artificial Stone
Frame Style: Frameless
Glass Thickness: 8mm/10mm
Open Style: Sliding
Description
Technical Parameters
Wholesale Super Quality Special Design Glass 2 Panel Slide System Shower Screen (KD8113-B)
Product Description
What Specifications of Shower Door?
| Name | KD8113-B |
| Size |
Model Size: 1300*1900mm (Height:1800~2200mm Width: 1200-1500mm) |
| Shape | 1 fixed panel, 1 sliding glass shower screen |
| Tempered glass | 6mm/8mm |
| Tempered glass certification | DIN EN 12150, AS/NZS 2208:1996, ANSI Z97.1-2004 , BS6206 |
| Glass type for choice | Clear, Frosted, Strip frosted, Silk-screen glass |
| Glass color for choice | Clear, Grey, Blue, Blue+ Black Frame |
| Glass function for choice | Normal, Easy Clean glass, anti-blast wired glass |
| Track, Rollers | SS304 |
| Handle | SS304 |
| Packing detail | Standard export cartons with foam and pearl cotton inside and outside with product description. |
| Production time | 15-30 days |
| Size of packing(mm) | 750*1955*90 |
| Quantity of container |
220 sets/20" |
| 449 sets/40" | |
| 503 sets/40HQ" |
What More Detailed Pictures?
Related Products
304 Stainless Steel Roller Shower Enclosure Cubicle Best Price Tempered Glass Plastic Sliding Shower Door(KD8013A)
Glass & Accessories

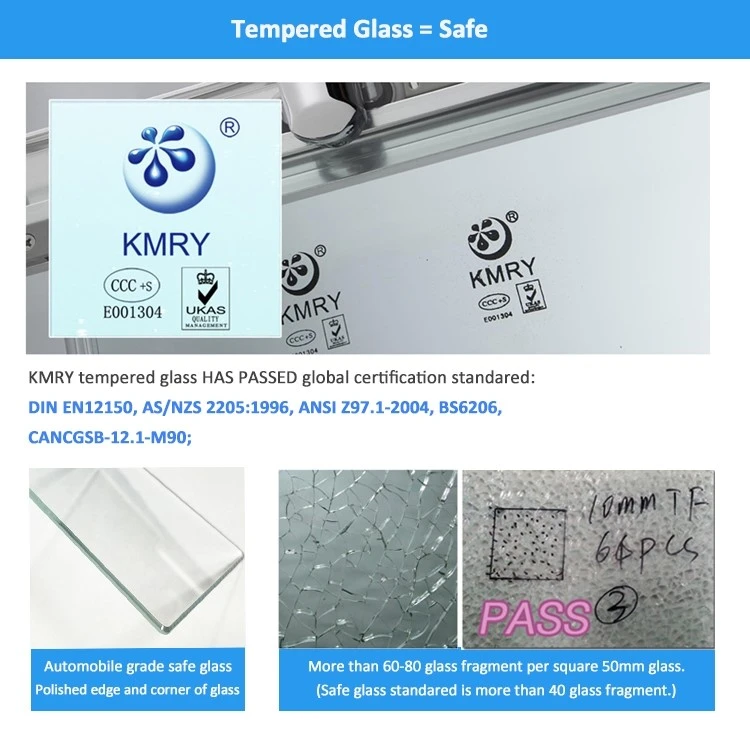

Safe Tempered Glass
● Tempered glass are tested and comply to the global certification standards: DIN EN12150 , AS/NZS 2208:1996 , ANSI Z97.1-2004 , BS6206, CAN/CGSB-12.1-M90
● Automobile grade safe glass, high purity, good impact resistance.
● More than 60-80 glass fragment per square 50mm glass .(Safe glass standard is more than 40 glass fragment.)
● Available for clear, blue, gray, colorful, silk-screen glass , easy clean and anti-blast wired glass.
● Available for 6mm, 8mm, 10mm, 12mm glass.
Durable Sliding System
● Rollers -ingeniously designed, made of 304 stainless steel or fine zinc alloy bearing, high quality, and long useful life.
● Rollers pass the test of 50, 000 consecutive opening/closing cycles.
Fine 304 Stainless Steel Hardware
● KMRY stainless steel shower room adopt high quality 304 stainless steel material high corrosion resistance, luxury, solid and durable.
High Density Aluminum Frame
● A high-quality aluminum alloy with hardness of about 14 degrees, moderate tenacity, wall thickness of 1.2-3.0mm and high resistance to deformation.
● The oxide film is subject to 12-hour acetic acid corrosion resistance test and alkali spotting test, wear resistance test and aging test in accordance with the national standards.
● Adjustable profile can be adjusted +-20mm.
Water Tight Seal
● Most innovative gasket design with bi-folding creates a perfect water-tight solution.
● Strip by water cycling designed for better sealing.
● The wall joint folder designed to facilitate the effective error correction walls. They can be adjusted out of +-15~20mm meeting with every bathroom wall requirement.
Company Information
Production Process
Packaging & Shipping
Safe Package:
1. Each aluminum frame component and metal component is wrapped with transparent film which can protect the aluminum from being scratched, and then in pearl cotton.
2. Each glass component is packed with pearl cotton which is much safer for long time shipping.
3. Finally fill the 5 layers corrugated carton with foam and then bind it with 5 or more plastic belts.
